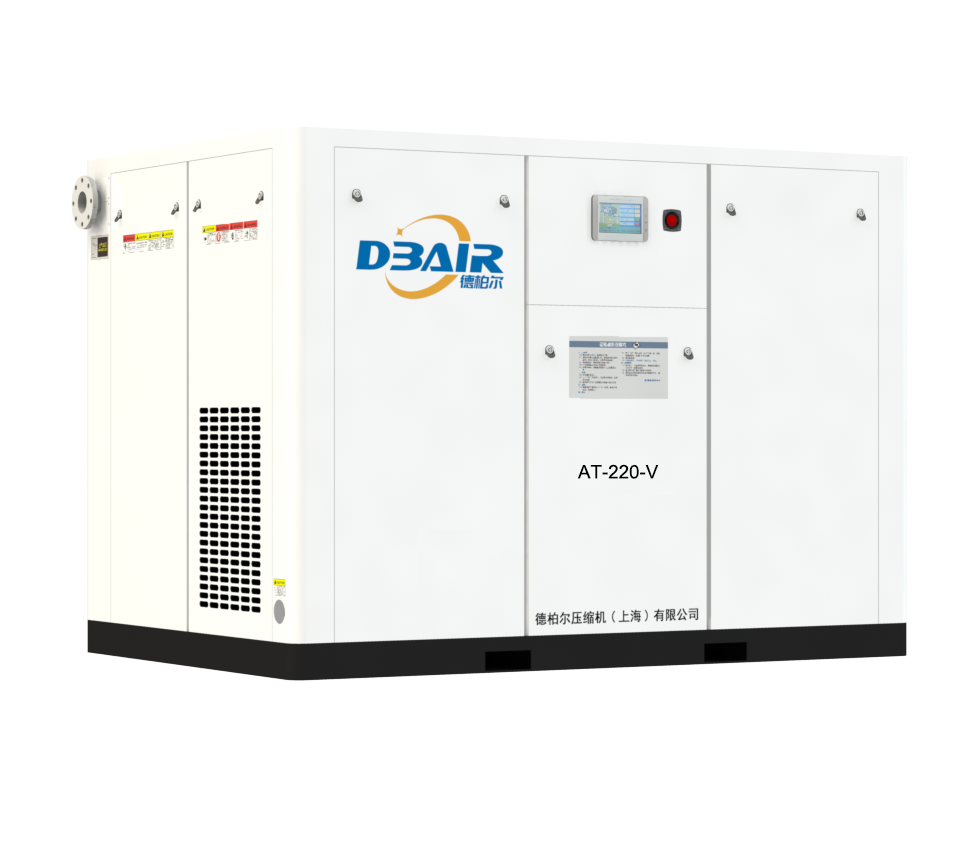

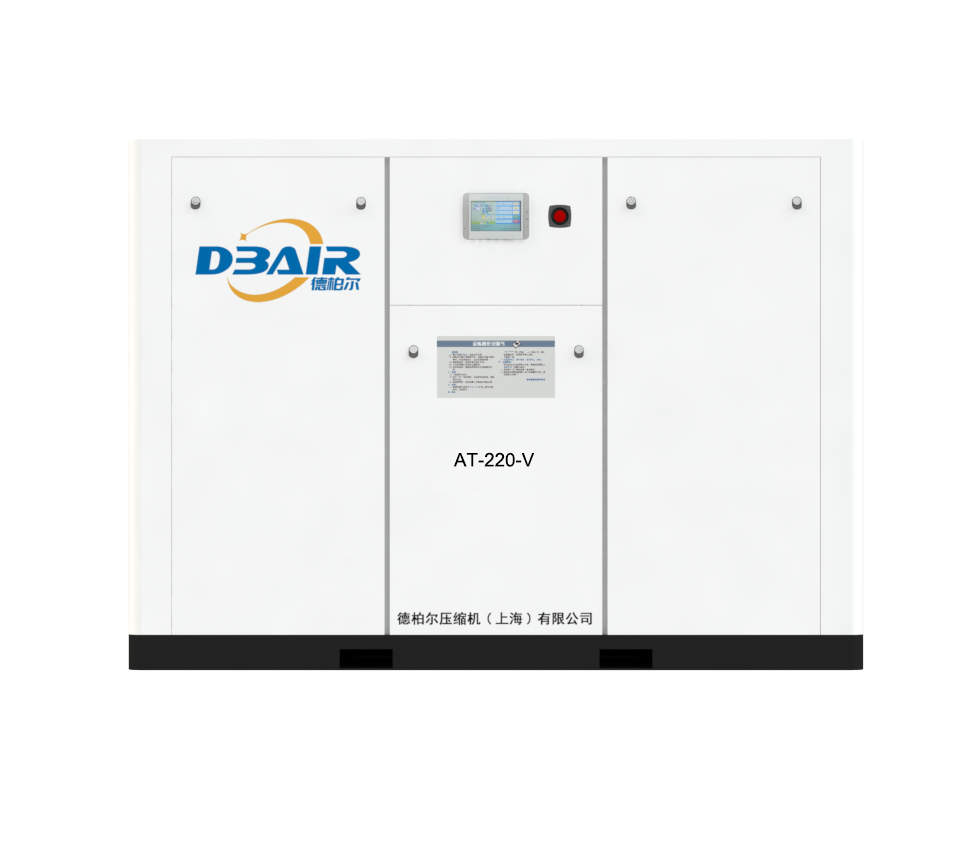

- AT-220-V
1、高效节能电机,防护等级IP55,绝缘等级F级;
2、静音、节能、恒压输出、静音离心风机;
3、冷却器超大设计、侧吸顶排式冷却设计、冷热分区设计;
4、主机进口轴承:6颗,最高承载压力1.6MPa;
5、旋风式分离系统,空气出口含油量低;
6、智能控制系统,多方位整机保护功能;
7、不锈钢管道与高压橡胶软管结合设计,整机低振动;
8、干燥压缩空气,同功率产品能效提升9.3%。
24小时热线 13585841203
TYPE | Maximum working pressure | Capacity fad | Installed motor power | Noise level | Weight | Dimensions | Outlet PIPe Diameter | Drive method | ||||||||
Standard | Full feature | Pack / Full feature | Standard | L | W | H | ||||||||||
bar | psig | bar(e) | psig | l/s | m³/min | cfm | hp | dB(A) | kg | ib | mm | mm | mm | inch | ||
AT-220-V | 7 | 102 | 6.8 | 99 | 637 | 38.2 | 1350 | 300 | 85±3 | 4500 | 9900 | 3000 | 1950 | 2000 | DN100 | Direct Driven |
8 | 116 | 7.8 | 113 | 564 | 33.8 | 1194 | ||||||||||
10 | 145 | 9.8 | 142 | 523 | 31.4 | 1107 | ||||||||||
12.5 | 181 | 12.3 | 178 | 477 | 28.6 | 1010 |
